Tutorial: How to add a coil when it is not in the list off the selectable component

How to add a coil when it is not in the list from the selectable component.

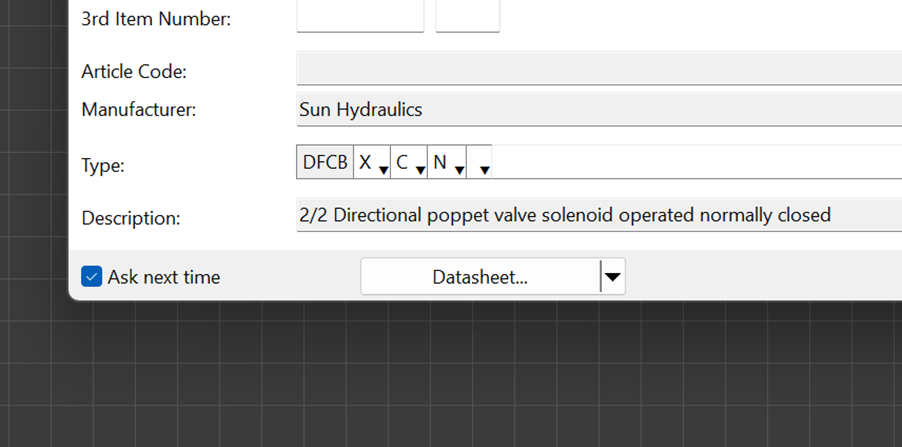

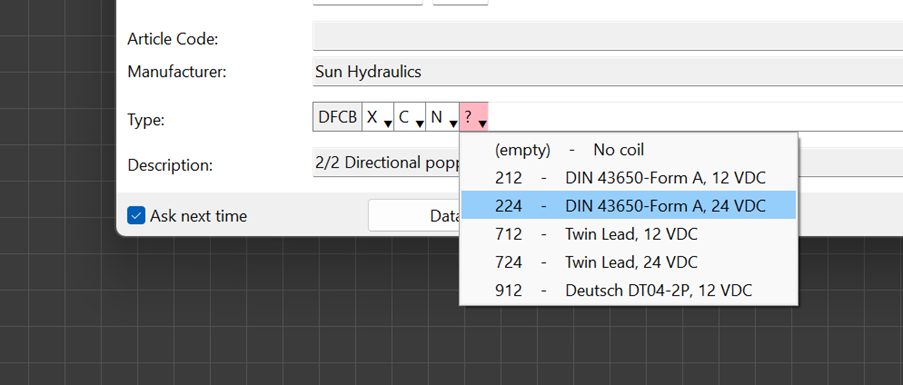

If the coil you are searching for is not in the list you also can set the component to no coil and add the coil to the component when it is in your schematic.

You can do that like this.

Use Ok to insert the component in your schematic.

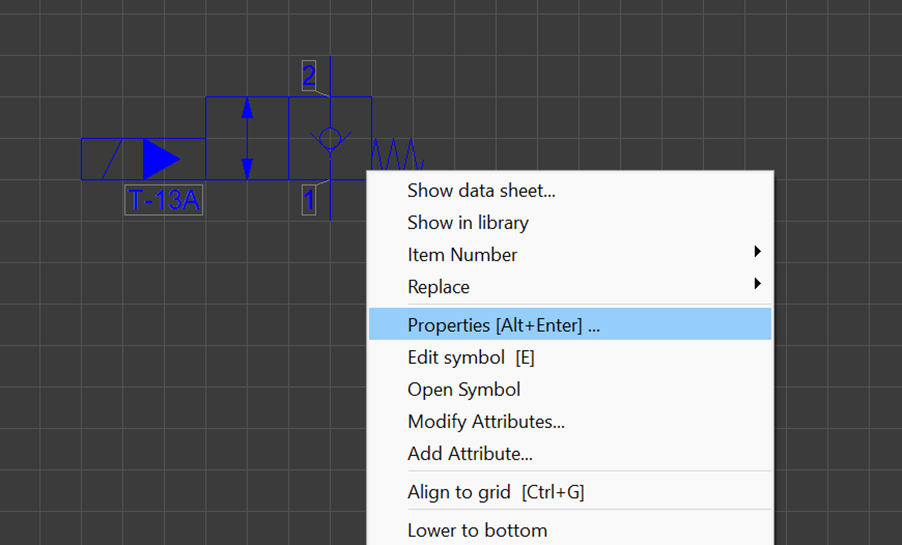

Select the component, use the right mouse button and select properties.

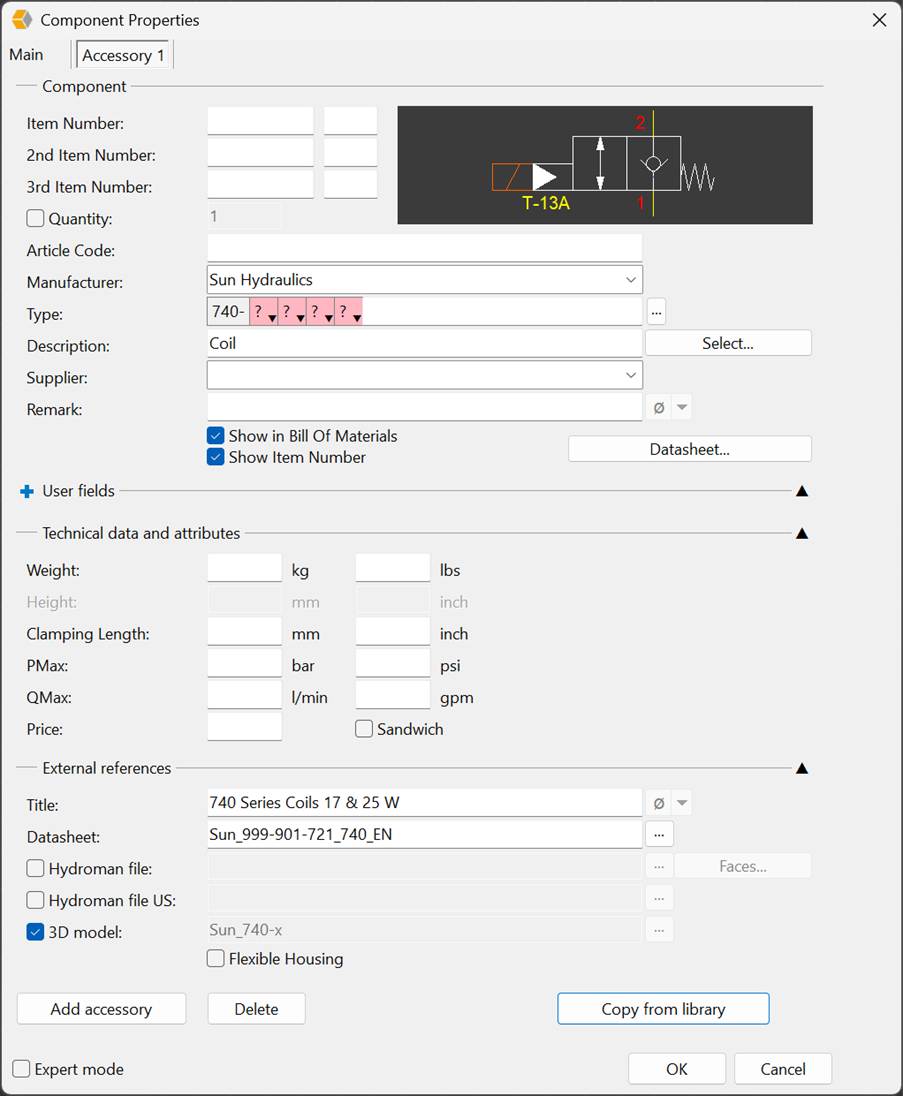

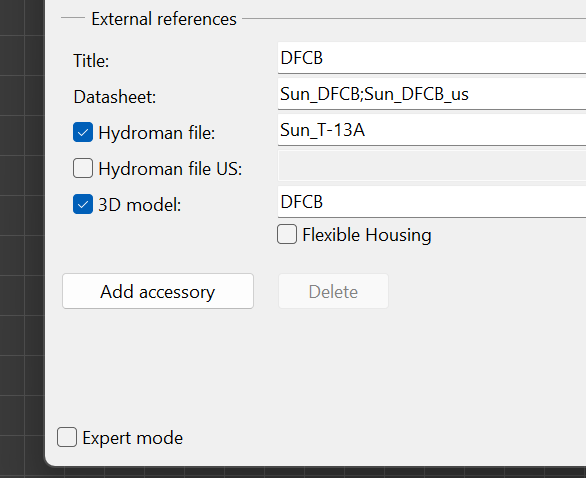

Select Add accessory

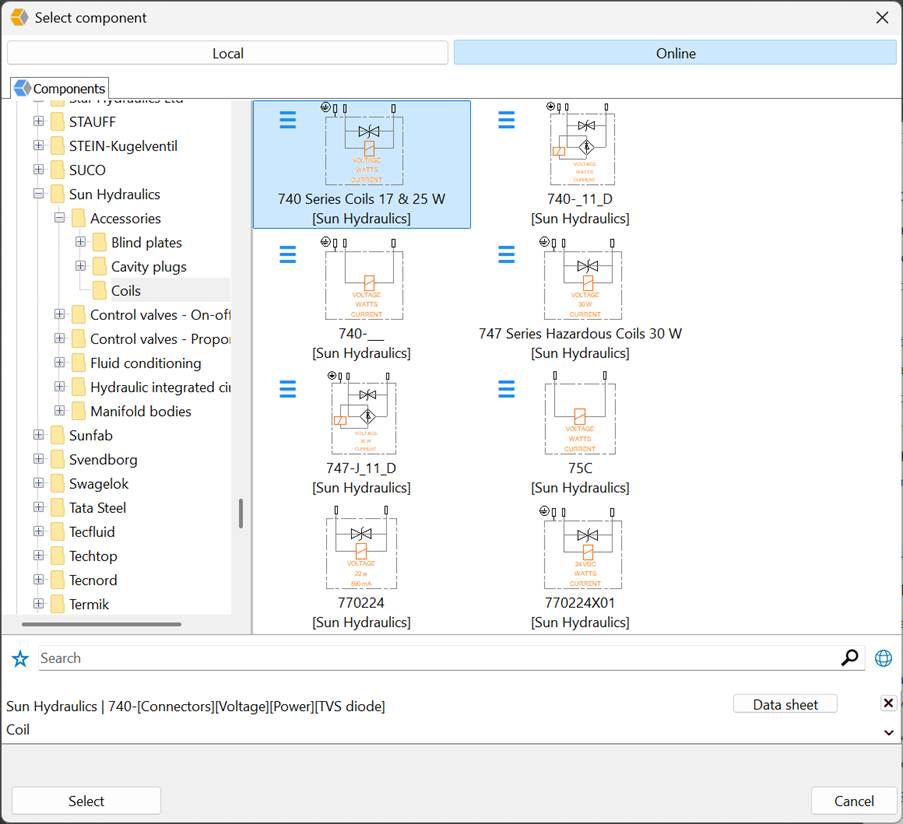

Use copy from library and browse to the folder where the coil are.

For example

Use select ->

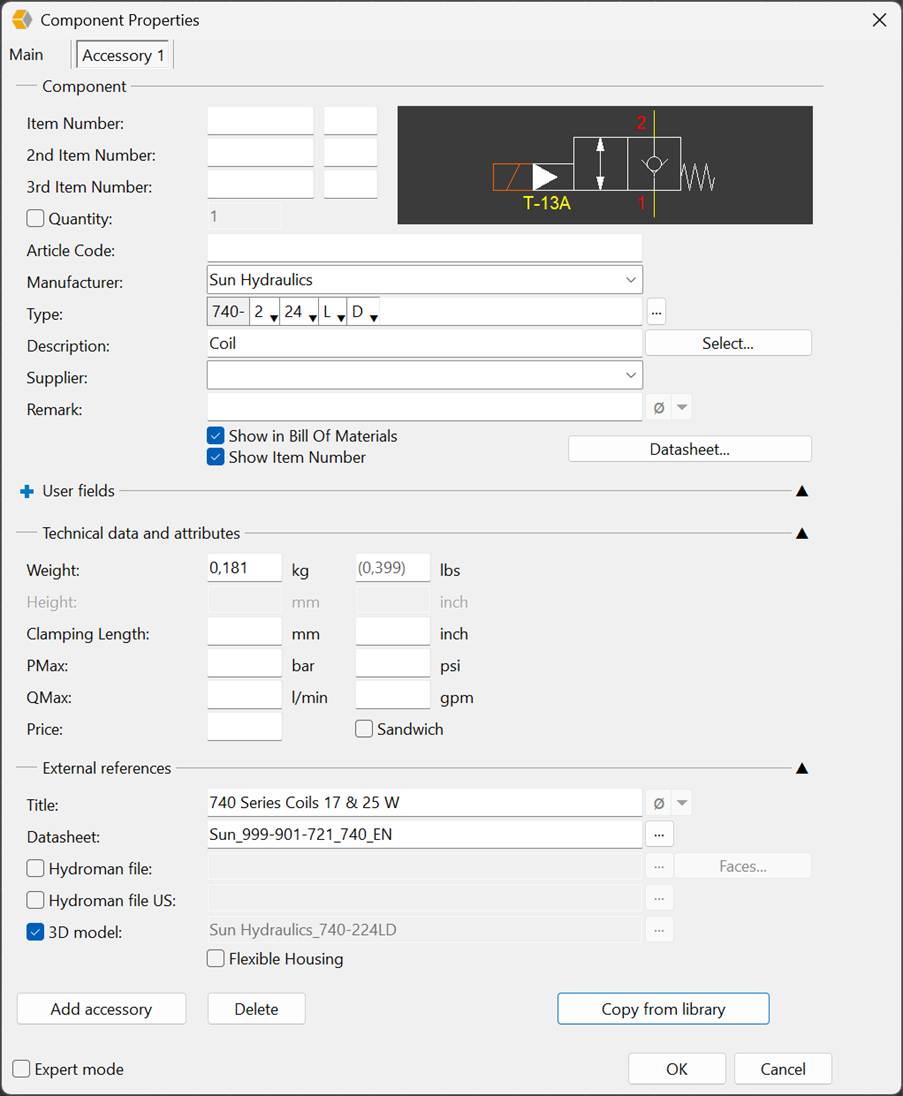

After inserting you can in this case configure the coil.

For example

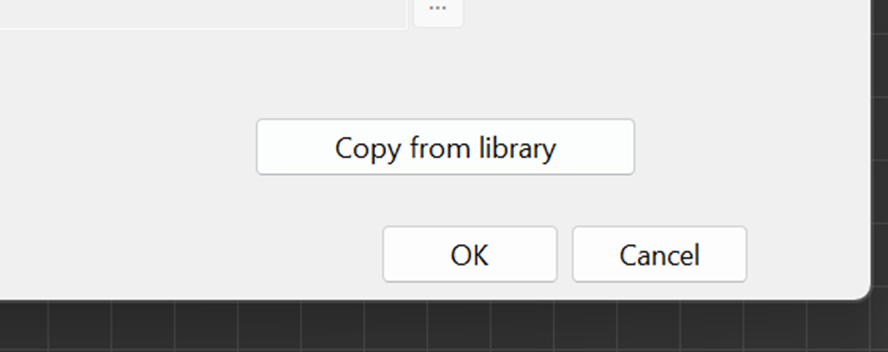

Use Ok

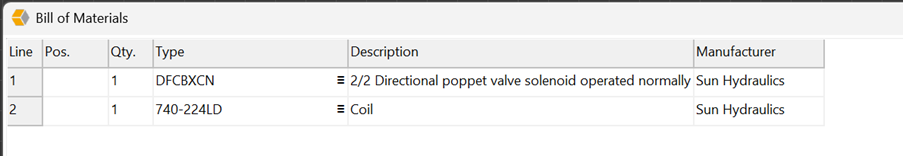

In the BOM it will look like this.

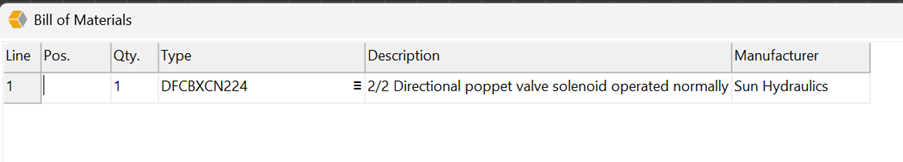

If you don't add a coil separately and select the coil in the component it can look like this.
